Local area network

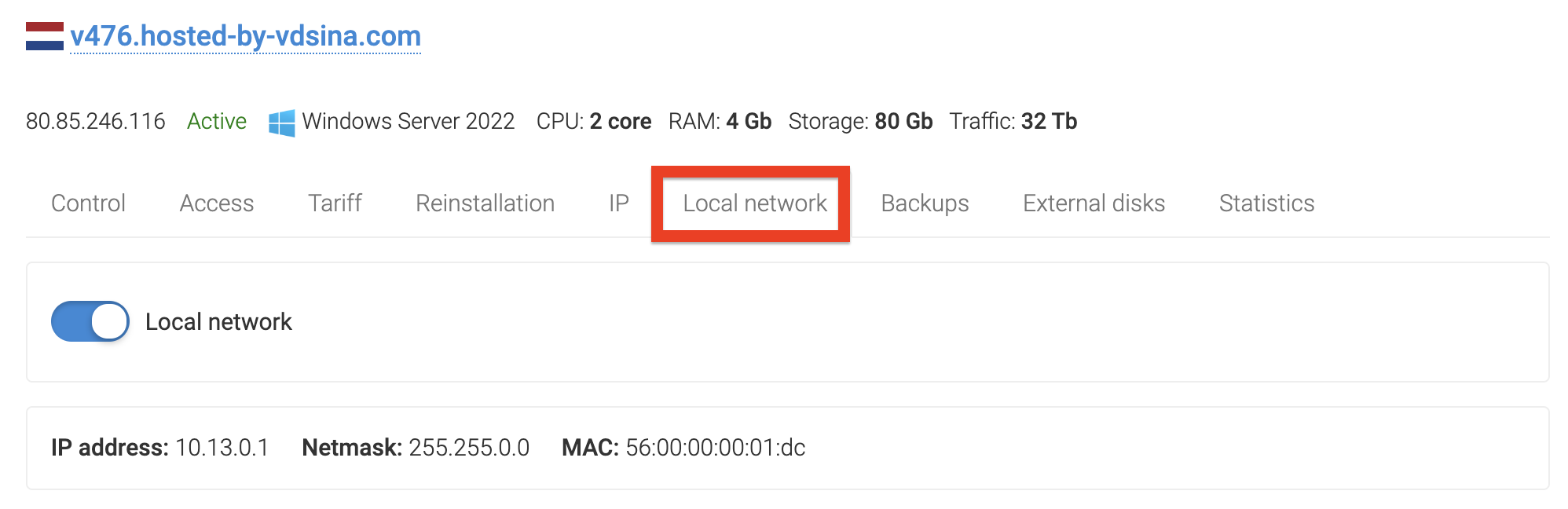

Within the framework of the location, it is possible to organize a local network between servers, for this the "Local network" option is available in the server settings.

After activation, you need to configure the network interface according to the received IP.

Example settings for different operating systems:

CentOS 6,7

You need to create a file /etc/sysconfig/network-scripts/ifcfg-eth1 with the following contents

DEVICE=eth1
ONBOOT=yes
NM_CONTROLLED=no
BOOTPROTO=static
IPADDR=10.13.0.100
NETMASK=255.255.0.0
IPV6INIT=no

and run the interface with the command

ifup eth1

CentOS 8

It is necessary to create a file /etc/sysconfig/network-scripts/ifcfg-ens6 with the following contents

DEVICE="ens6"
BOOTPROTO="static"
ONBOOT="yes"
IPADDR="10.13.0.100"
NETMASK="255.255.0.0"

and run the interface with the command

ifup ens6

Debian 7, Debian 8, Ubuntu 12-15

In the /etc/network/interfaces file, add entries on the internal interface

auto eth1
iface eth1 inet static
    address 10.13.0.100
    netmask 255.255.0.0

and run it

ifup eth1

Debian 9, Debian 10, Ubuntu 16, Ubuntu 17

In the /etc/network/interfaces file, add

auto ens6
iface ens6 inet static
    address 10.13.0.100
    netmask 255.255.0.0

and launch the interface accordingly

ifup ens6

Ubuntu 17.10, Ubuntu 18, Ubuntu 20.04

In the /etc/netplan/01-netcfg file.yaml add

ens6:
       addresses: [10.13.0.100/16]

update the network configuration or restart the server

netplan apply

FreeBSD

Add to the /etc/rc.conf file

ifconfig_vtnet1="inet 10.13.0.100 netmask 255.255.0.0"

and restart the server.

Windows

Make settings in the configuration of the corresponding network interface.

*The address 10.13.0.100 is given as an example!

It is also advisable to allow traffic only between your IP addresses on the firewall.
